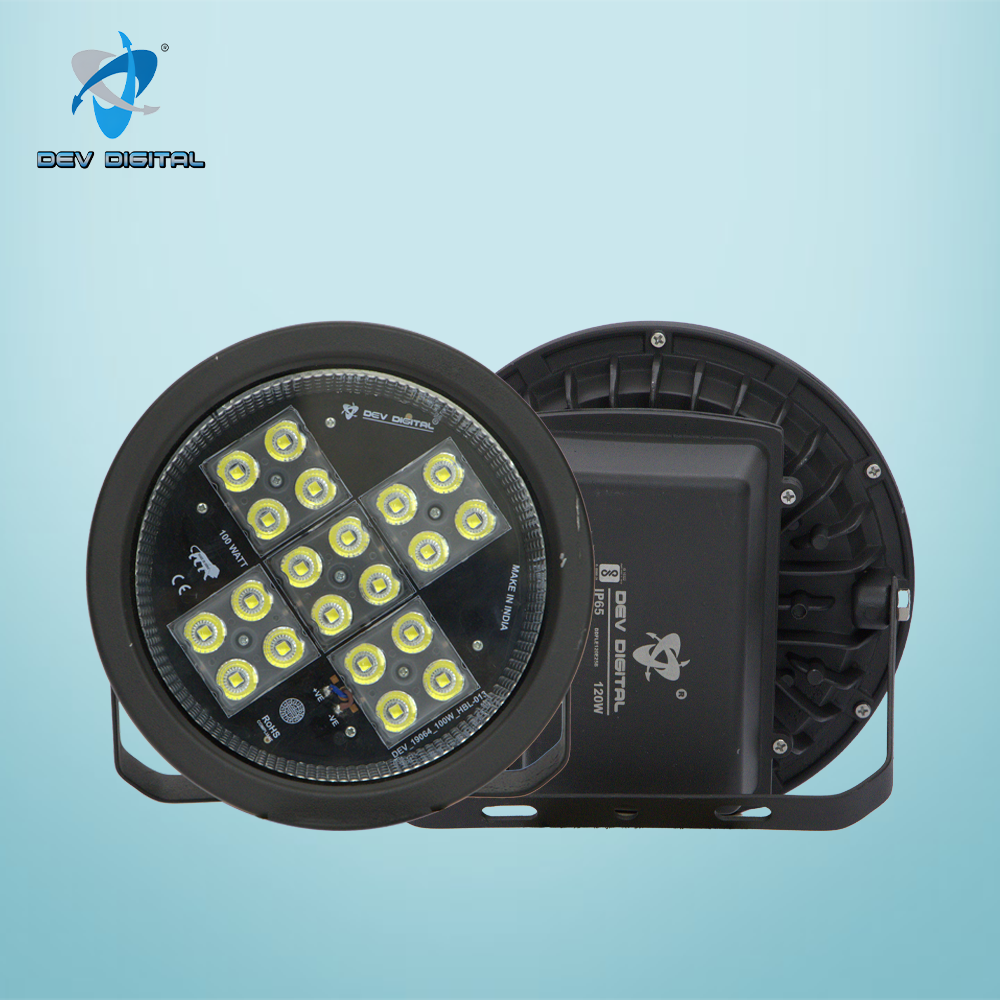

LED HIGHBAY LIGHT - 100W ERIS

LED HIGHBAY LIGHT - 100W ERIS Specification

Efficiency (%)
>90

Color Temperature
3000-6500K Kelvin (K)

Humidity %
>80

Housing
ALLUMINIUM DIE CAST

Light Color
White

Beam
30,60,90 DEGREE

Life Span
50000 HOUR

Product Type
LED HIGHBAY LIGHT

Power Factor
>0.9

Input Voltage
230VAC Volt (V)

Working Temperature
UP TO 70 DEGREE Celsius (oC)

Lamp Power
100W Watt (W)

Warranty
2 YEAR WARRANTY

Application
OUTDOOR AND INDOOR

Size
Customized as per Order

Usage & Applications
OUTDOOR

Cable Type
3 CORE

Color
GREY

Phase
SINGLE PHASE

Features
WATERPROOF

Frequency
50HZ Hertz (HZ)

Material
ALLUMINIUM DIE CAST

LED Type
SMD

IP Rating
IP65

LED HIGHBAY LIGHT - 100W ERIS Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
5 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
STANDARD PACKING

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
BIS,CE,ROHS

About LED HIGHBAY LIGHT - 100W ERIS

LED HIGHBAY LIGHT - 100W ( ERIS )

Housing - Die cast aluminum with powder coated
Finish- Grey / Black
Light Source - Osram / Seoul, LM-80 approved LED
Rated Lumens - 140 Lm/W
Control Gear - IP 66, 440V, OVP, UVP,BIS Approved
CRI - >70
Surge Protection -4 to 6 KV Inbuilt
Power Factor - >0.95
System Efficacy(LM/W) - 110
Input Voltage - 85 - 285 V AC
Colour - White/ Warm White / Red/ Green / Blue / Pink / Amber
LED life Span -50000 Hour
LED Beam Angle - 120 Degree
Electrical Efficiency - >90%
Optical Efficiency - >93%
Thermal Efficiency - >90%

Durability and Design

Engineered for demanding environments, the 100W ERIS LED Highbay light boasts an aluminium die-cast body. Its IP65 waterproof rating and capability to withstand over 80% humidity safeguard it against harsh weather and dust, making it ideal for outdoor and indoor applications alike.

Outstanding Efficiency and Lifespan

Achieve over 90% efficiency and a substantial 50,000-hour operational lifespan. The SMD LED technology paired with reliable components (3-core cable, power factor >0.9) ensures long-term illumination with minimal power loss, reducing maintenance and energy costs.

Adaptable Lighting Solution

This highbay light features customizable sizing, adjustable color temperature (3000K-6500K), and multiple beam angles (30, 60, 90) to fit diverse project requirements. Its versatile application covers warehouses, production lines, sports arenas, and more across both indoor and outdoor environments.

FAQ's of LED HIGHBAY LIGHT - 100W ERIS:

Q: How is the LED Highbay Light - 100W ERIS installed and used?

A: The light fixture is installed using standard mounting hardware suitable for ceilings or high spaces. It connects directly to a 230VAC, single-phase power supply via a secure 3-core cable. Ideal for illuminating large areas, it can be used in warehouses, factories, or sports facilities.

Q: What makes this LED Highbay light suitable for high-humidity environments?

A: Thanks to its aluminium die-cast housing and IP65 waterproof rating, the highbay light easily withstands humidity levels above 80% as well as exposure to dust or water, making it reliable for both outdoor and high-moisture indoor settings.

Q: When should I choose a 6500K or a warmer 3000K color temperature option?

A: Select 6500K for crisp, white lighting in industrial or work environments where clarity is essential. For areas that benefit from warmer, softer illumination, such as indoor retail or hospitality zones, the 3000K-4000K range is ideal.

Q: Where can the 100W ERIS LED Highbay light be installed?

A: It is designed for high-ceiling installation in places like warehouses, gyms, factories, commercial spaces, and large indoor or outdoor venues, offering flexible lighting options for each specific application.

Q: What is the process for customizing the size of this highbay light?

A: Sizes can be tailored on order as per project requirements. Simply specify your dimensions at the time of purchase, and the manufacturer will produce the custom size to match your installation needs.

Q: What are the main benefits of using the 100W ERIS LED Highbay light?

A: Key benefits include high energy efficiency (>90%), long lifespan (up to 50,000 hours), robust waterproof and dustproof design, flexible color temperature, multiple beam angle options, and reduced maintenance costs. The two-year warranty ensures peace of mind.
