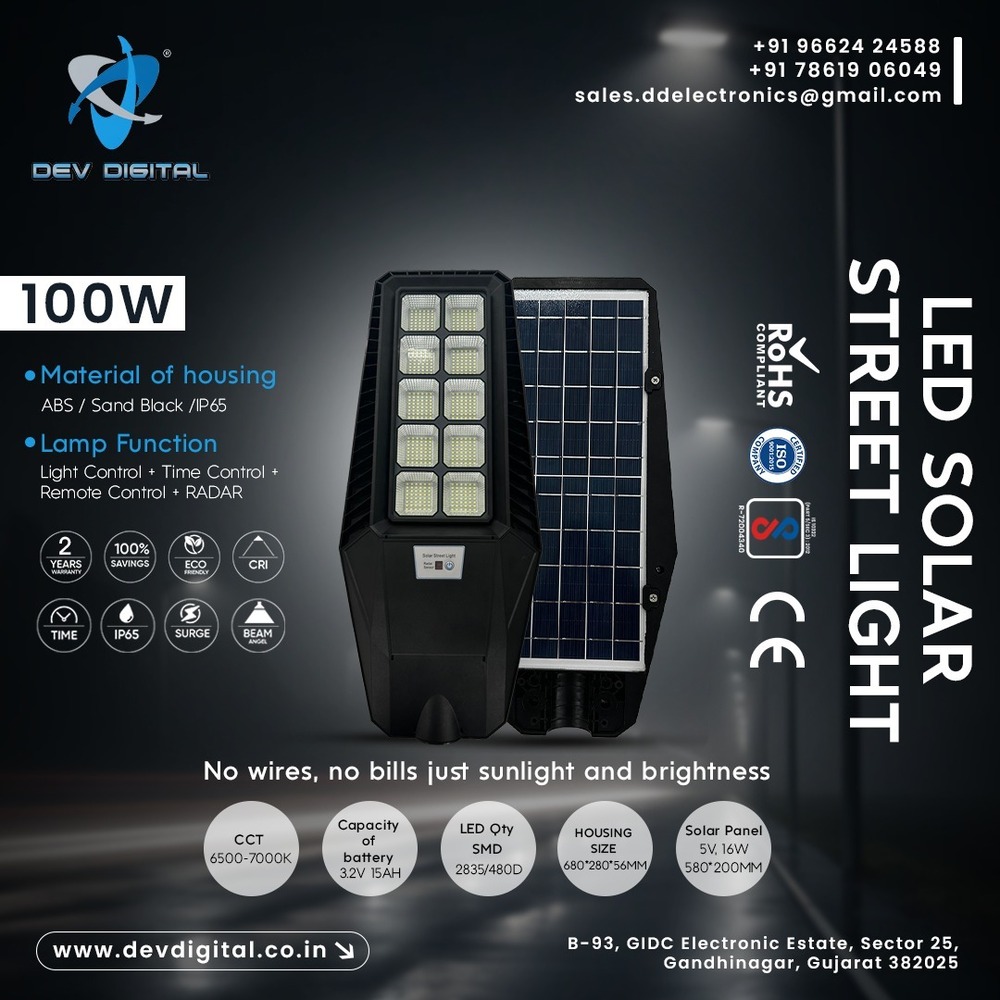

SOLAR LED STREET LIGHT ALL IN ONE -100W

SOLAR LED STREET LIGHT ALL IN ONE -100W Specification

Humidity %
95%

Beam
120 Wide Angle

Response Time
<1 second

Shape
Rectangular

Housing
Die-cast Aluminium

Light Color
Daylight White

Control Type
Automatic (Dusk to Dawn) with Motion Sensor

Operating Temperature
-20C to 60C

Current Rating
2A

Life Span
>50,000 hours

Power Supply
Solar Panel, Lithium Battery

Efficiency (%)
>90%

Wireless Distance
8-12m (PIR Sensor Range)

Product Type
Solar LED Street Light All In One

Material
Aluminium Alloy Housing

Base
Integrated

Power Factor
>0.95

Input Voltage
6V DC

Working Temperature
-20C to 60C

Lamp Power
100W

Application
Outdoor Street Lighting, Campus, Parking Areas, Garden

Size
Standard, 100W Panel

Dimension (L*W*H)
1090 mm x 360 mm x 45 mm

Weight
11.5 kg

Color
Grey/Silver

LED Type
SMD 5730

Color Temperature
6000K - 6500K

IP Rating
IP65

Surge Protection
Up to 6KV

Mounting Height
4-6 meters recommended

Motion Sensor
PIR Motion Sensor

Discharge Time
18-24 hours on full charge

Solar Panel Type
Monocrystalline, 18V 120W

Installation
Pole & Wall Mountable

Battery Type
LiFePO4 Lithium Battery, 12.8V 54Ah

Charging Time
6-8 hours (full sunlight)

Lens Type
PC Optical Lens

Number of LEDs
216 pcs

SOLAR LED STREET LIGHT ALL IN ONE -100W Trade Information

Minimum Order Quantity
50 Units

Payment Terms
Cash Advance (CA)

Main Export Market(s)
Asia

Main Domestic Market
All India

About SOLAR LED STREET LIGHT ALL IN ONE -100W

Solar All In One Street Light - 100W

Solar All In One Street Light - 100W has a light weight structure to installed easily without any extra efforts. It is powered with solar products to consume less energy. This light is useful to give a warm color light on street roads. Apart from this, provided light is easy to use at both day and night time. It can easy to clean with dry cloth. Solar All In One Street Lighti- 100W doesn't produce any UV rays or harmful radiations.

Efficient and Sustainable Outdoor Illumination

Benefit from powerful, eco-friendly lighting wherever needed with the 100W All-in-One Solar LED Street Light. Its integrated monocrystalline solar panel and high-capacity lithium battery mean no grid power is required, greatly reducing energy costs and environmental impact. Designed with an IP65-rated aluminium housing, it reliably operates across extreme weather and temperature ranges, offering robust, weatherproof performance year-round.

Advanced Features for Smart Lighting

This all-in-one light includes an intelligent PIR motion sensor that automatically adjusts brightness and enhances security. The wide 120 beam angle ensures comprehensive area coverage, perfect for campus, parking, and garden lighting. With automatic dusk-to-dawn operation, the light seamlessly turns on at sunset and off at sunrise, ensuring reliable illumination with minimal effort.

FAQ's of SOLAR LED STREET LIGHT ALL IN ONE -100W:

Q: How does the automatic dusk-to-dawn function of the SOLAR LED STREET LIGHT work?

A: The street light uses a built-in light sensor and PIR motion sensor to automatically switch on at dusk and off at dawn. This ensures area illumination only when needed, conserving power and reducing maintenance requirements.

Q: What is the recommended installation process and mounting height for optimal performance?

A: It is recommended to mount the light at a height between 4 to 6 meters for optimal light distribution. You can install it on either a pole or a wall using standard mounting brackets, ensuring the solar panel is exposed to direct sunlight for efficient charging.

Q: When will the battery need recharging, and how long does a full charge last?

A: The LiFePO4 lithium battery requires 6-8 hours of full sunlight to reach a complete charge. After a full charge, the light can operate continuously for 18 to 24 hours, depending on environmental and operating conditions.

Q: Where is this solar street light most suitable for use?

A: This product is ideal for outdoor street lighting, campuses, parking areas, gardens, and any other outdoor spaces requiring reliable, independent lighting without reliance on external power sources.

Q: What are the benefits of the integrated PIR motion sensor in this street light?

A: The PIR motion sensor automatically adjusts brightness based on movement within an 8-12 meter range, improving energy efficiency and providing added security by illuminating when activity is detected.

Q: How does the product ensure durability and resistance to environmental factors?

A: The light features a die-cast aluminium housing with an IP65 rating, which protects against dust, rain, and harsh weather. Surge protection up to 6KV and an operating temperature range of -20C to 60C further enhance its resilience.
